1.5" Mechanical Lock Standing Seam Panel - 24ga Steel
$4.07
Unit price
$4.07/ft
Not sure what you need? We're here to help. Call us at (303) 564-8196 or email info@samedaymetal.com
Custom 1.5" mechanical lock standing seam metal roof panels, roll-formed from 24 gauge pre-painted steel in lengths from 3' to 64'. The seam is mechanically locked in the field for a tighter, more weather-resistant roof than snap lock, with concealed clips keeping every fastener out of the weather.
Quick Specs
- Panel Type: 1.5" Mechanical Lock Standing Seam (DMC 150SS)
- Material: 24 gauge pre-painted steel
- Finish: PVDF / Kynar 500® — 35-year paint warranty

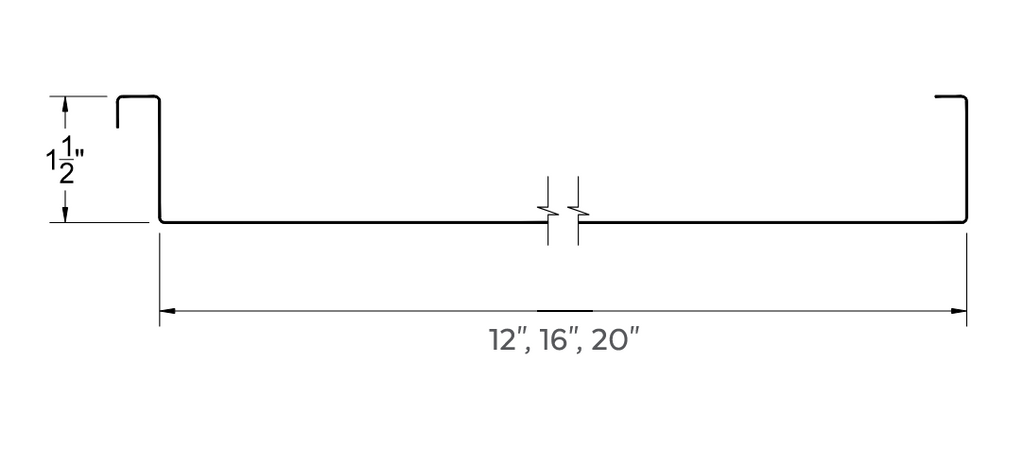

- Panel Width: 16"
- Panel Lengths: Custom, 3' to 64'

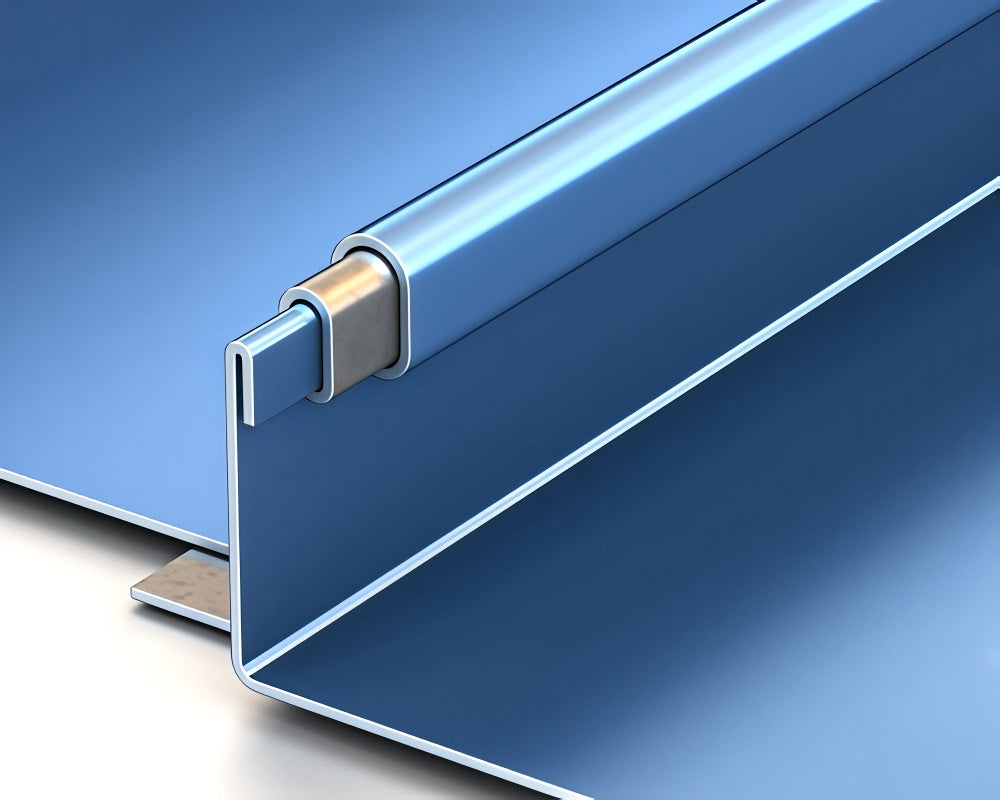

- Fastening: Concealed clip mechanical lock system
- Seam Options: Single lock or double lock
- Minimum Roof Slope: 1:12
- Rib Options: Flat Panel, Clip Relief, Striations, Bead
Mechanical Lock vs. Snap Lock
Mechanical lock panels are seamed together in the field with a seaming tool, creating a tighter lock than snap-together panels. That makes this profile the stronger choice for lower slopes and projects that demand enhanced seam performance. If you want faster installation on a steeper roof, consider our snap lock panel instead.
Why Choose This Panel?
- Enhanced weather resistance — field-seamed single or double lock
- Works down to 1:12 slope — lower than snap lock profiles
- Clean lines — concealed fasteners and custom lengths mean fewer seams
- Durable finish — Kynar 500® resists fading and chalking for decades
Colors
Choose from a wide range of standard and low-gloss architectural colors — neutrals, bronzes, grays, blacks, blues, greens, and reds. Eligible colors carry the PVDF / Kynar 500® paint system.
Custom Lengths & Ordering
Select your color, rib option, panel length, and quantity, then add to cart. Need lengths over 64', jobsite-specific lengths, or on-site roll forming? Contact us and we'll work out the best approach for your project.
Testing & Performance
Applicable approvals vary by assembly, gauge, substrate, clip spacing, and installation method.
- UL 580 Class 90 Wind Uplift
- UL 1897 Extended Phase Wind Uplift
- UL 2218 Class 4 Hail Impact
- UL 790 Class A Fire Rating
- ASTM E1592 Uniform Static Air Pressure Uplift
- ASTM E1646 Water Infiltration
- ASTM E1680 Air Infiltration
- UL Environmental — SRI Third-Party Verified
Need Help Ordering?
Call (303) 564-8196 or email info@samedaymetal.com — we'll help you pick the right seam type, length, color, and rib option for your project.
