1.5" Nail Strip Standing Seam Panel - 24ga Steel
$4.15
Unit price
$4.15/ft
Not sure what you need? We're here to help. Call us at (303) 564-8196 or email info@samedaymetal.com
Custom 1.5" nail strip standing seam metal panels, roll-formed from 24 gauge pre-painted steel in lengths from 3' to 64'. The built-in nail strip flange fastens directly to plywood or OSB — no separate clips — and the self-locking seam snaps together for a fast, clean install on roofs and walls.
Quick Specs
- Panel Type: 1.5" Nail Strip Standing Seam, self-locking snap seam (DMC 150NS)
- Material: 24 gauge pre-painted steel
- Finish: PVDF / Kynar 500® — 35-year paint warranty

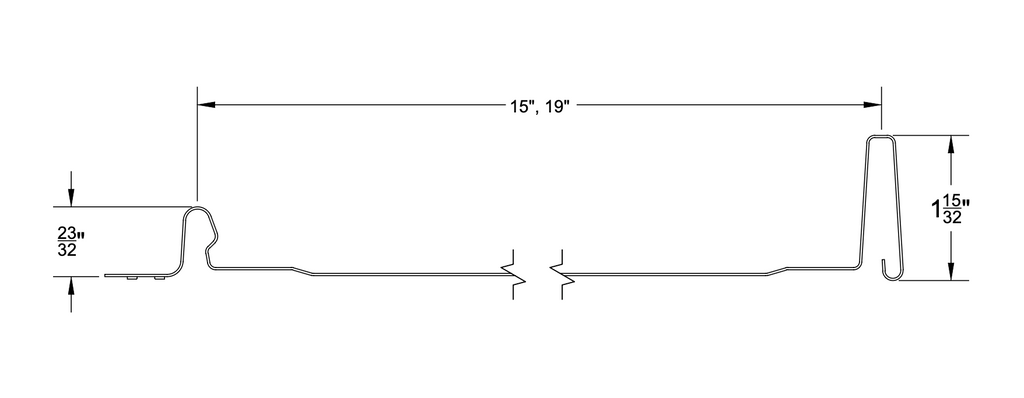

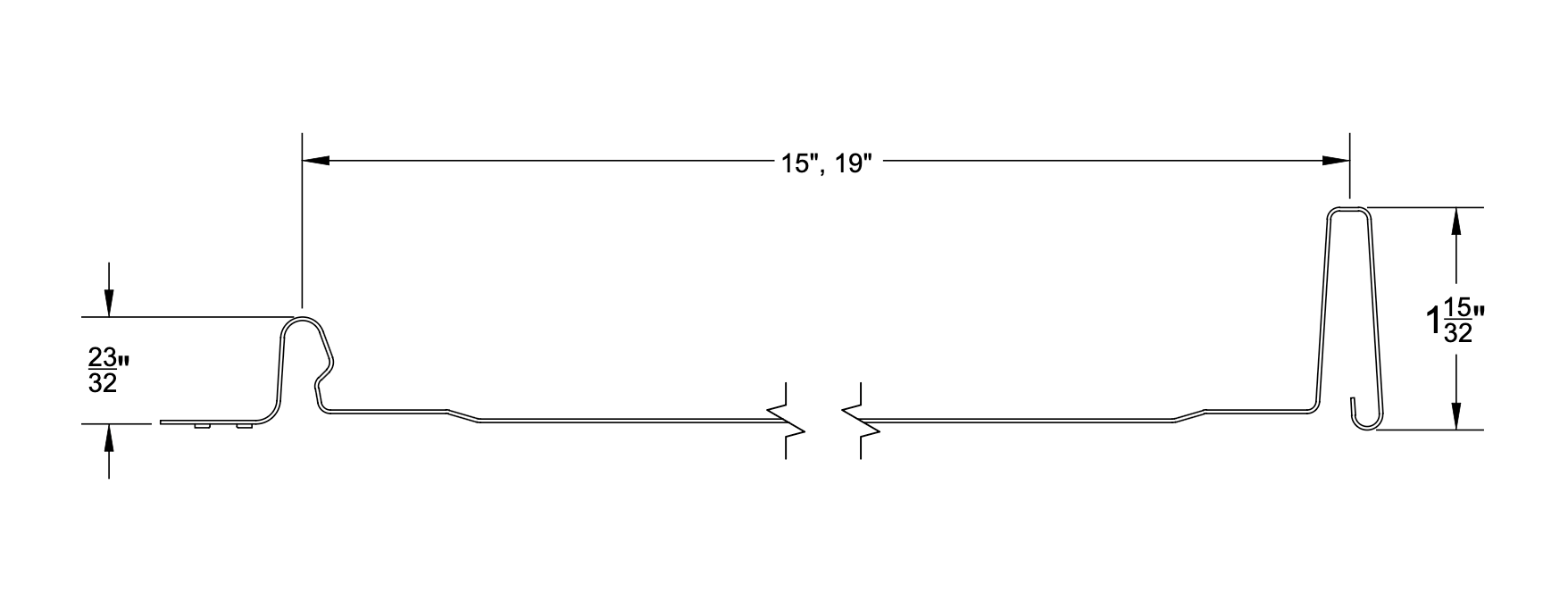

- Panel Width: 15" or 19"
- Panel Lengths: Custom, 3' to 64'

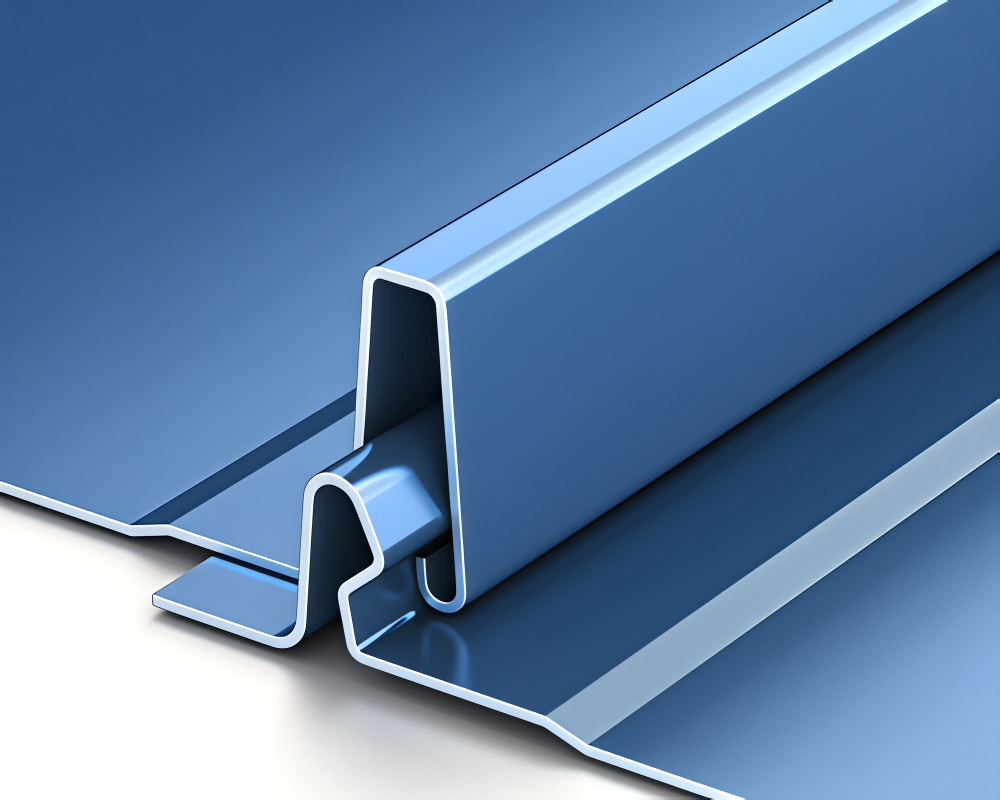

- Fastening: Concealed nail strip flange — no clips required
- Substrate: Plywood or OSB decking with approved underlayment

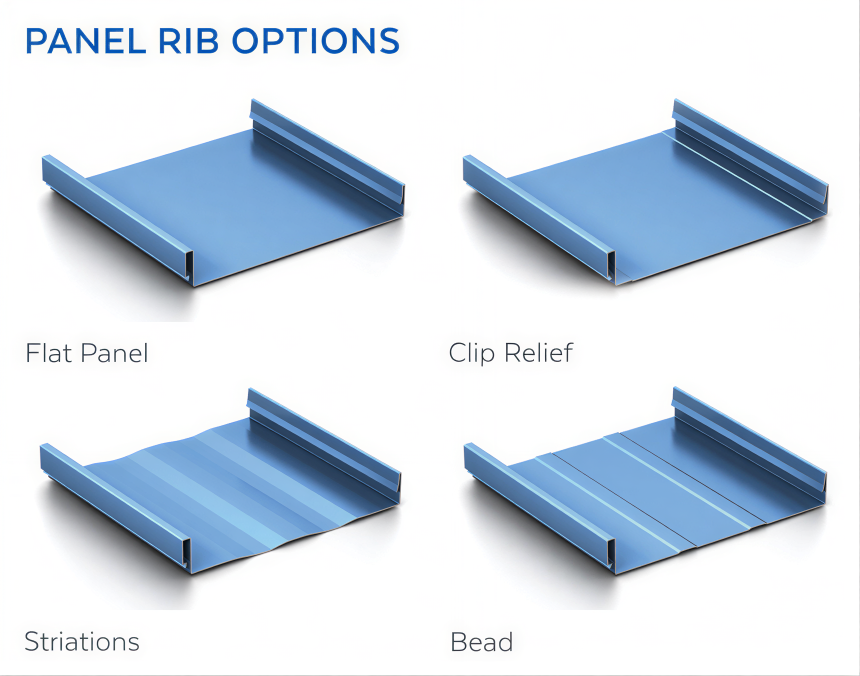

- Rib Options: Flat Panel, Striations, Bead
Why Choose This Panel?
- No clips, faster install — the integrated nail strip fastens straight to the deck

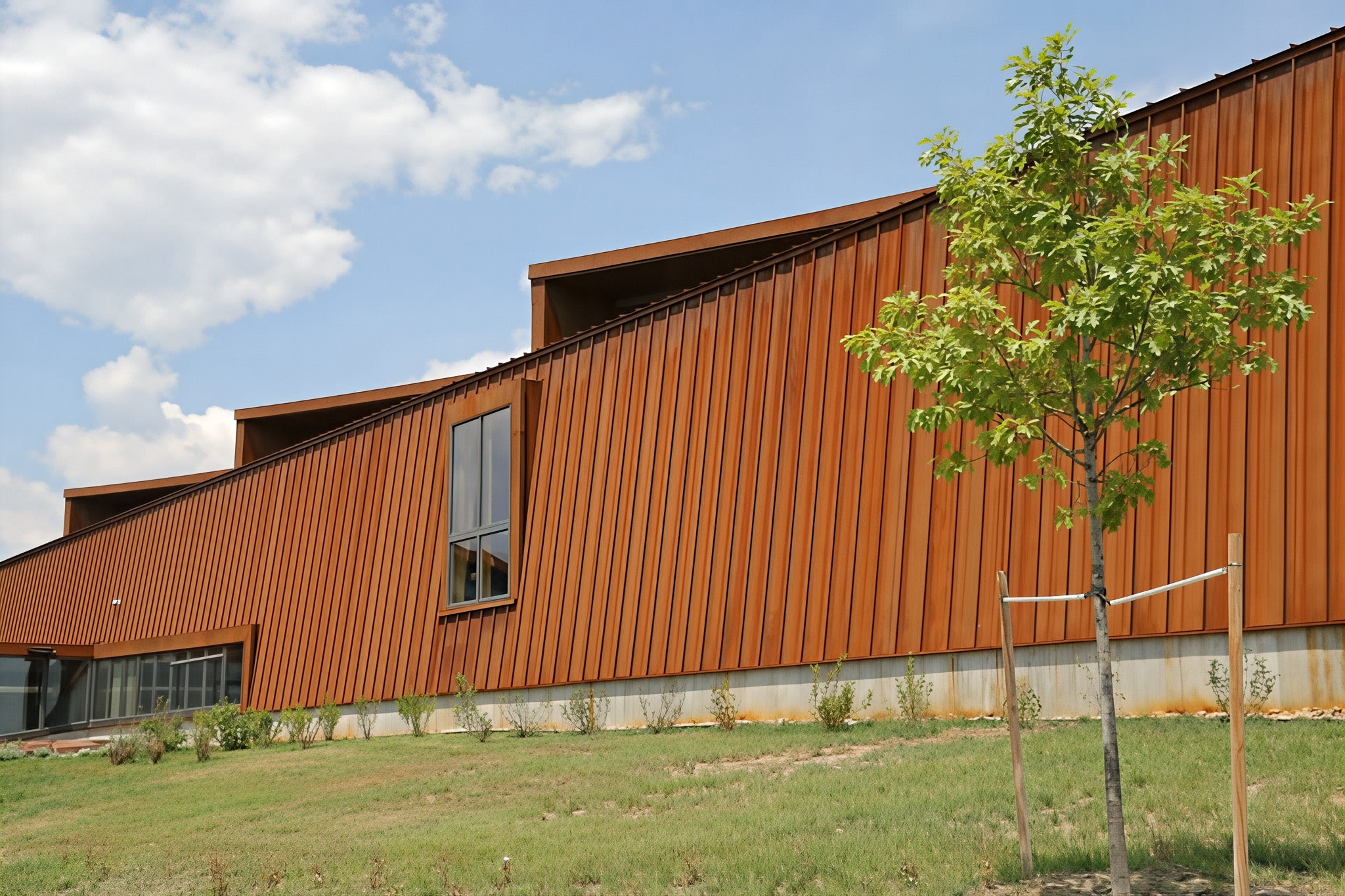

- Roof and wall use — the same profile works for roofing, accent walls, gables, dormers, and full-wall cladding
- Clean lines — concealed fasteners and custom lengths mean fewer seams
- Durable finish — Kynar 500® resists fading and chalking for decades
- Proven protection — Class 4 hail rated, Class A fire rated, Miami-Dade approved
Colors
Choose from a wide range of standard and low-gloss architectural colors — neutrals, bronzes, grays, blacks, blues, greens, and reds — that work equally well on roofs and walls. Eligible colors carry the PVDF / Kynar 500® paint system.
Custom Lengths & Ordering
Select your color, rib option, panel length, and quantity, then add to cart. Need lengths over 64', jobsite-specific lengths, or on-site roll forming? Contact us and we'll work out the best approach for your project.
Testing & Performance
Applicable approvals vary by assembly, gauge, substrate, fastener spacing, panel width, and installation method.
- UL 580 Class 90 Wind Uplift
- UL 1897 Extended Phase Wind Uplift
- UL 2218 Class 4 Hail Impact
- UL 790 Class A Fire Rating
- UL 263 Fire Certification
- TAS 100 Wind Driven Rain / TAS 125 Wind Uplift
- Miami-Dade County & Florida Building Code Approved
- UL Environmental — SRI Third-Party Verified
Need Help Ordering?
Call (303) 564-8196 or email info@samedaymetal.com — we'll help you pick the right width, length, color, and rib option for your project.
