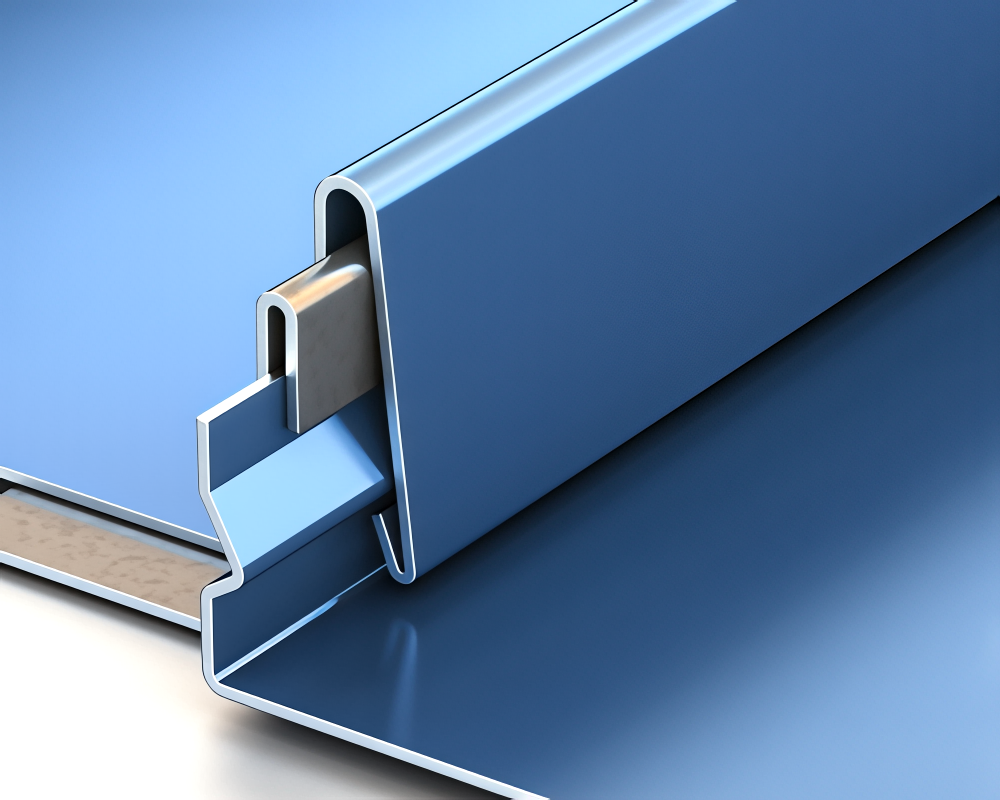

1.5 inch snap lock metal roofing panel detail with concealed clip fastening system
  • 1.5 inch snap lock metal roofing panel detail with concealed clip fastening system
  • Metal roof colors chart for PVDF Kynar 500 standing seam panels

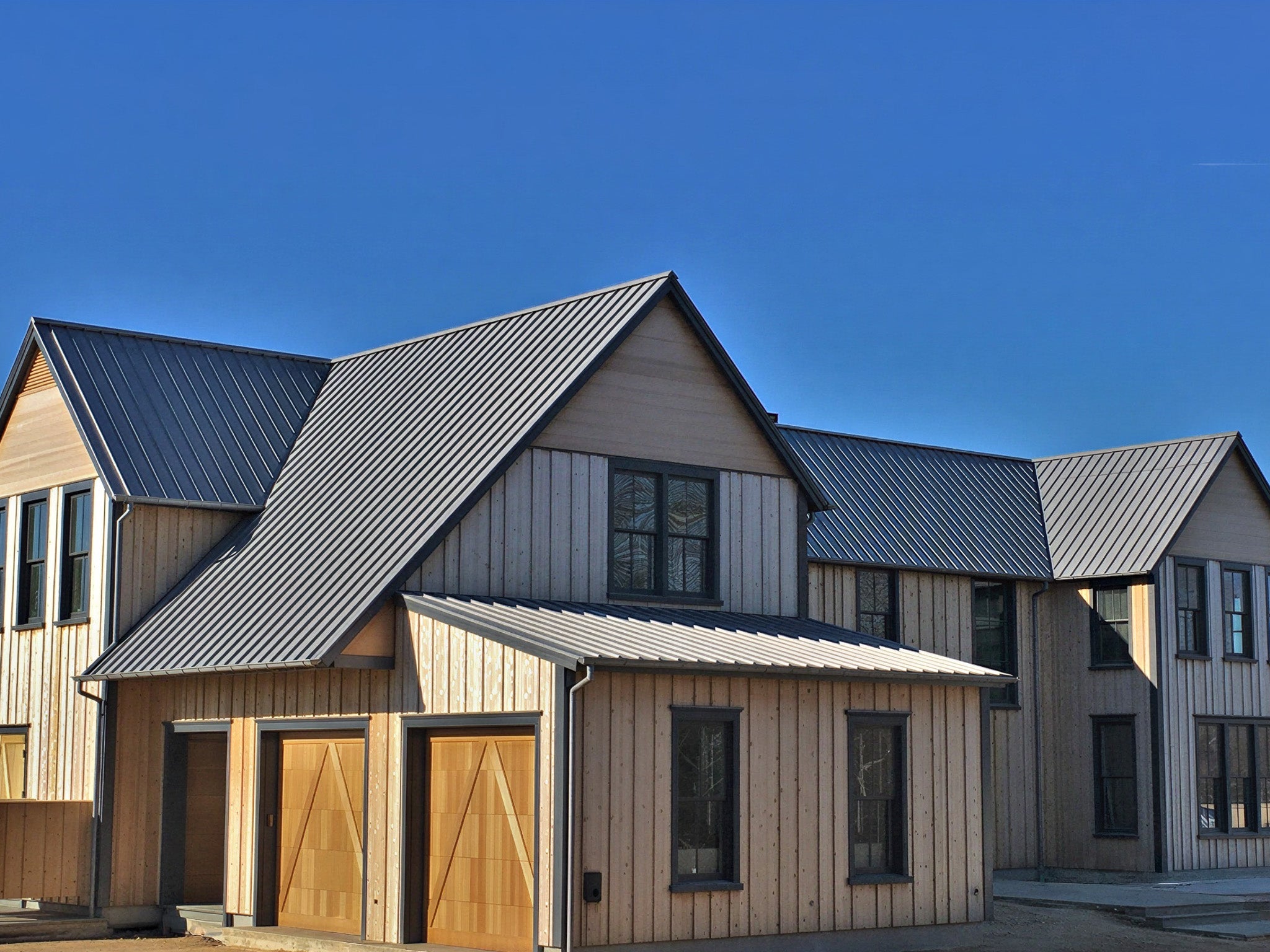

  • Modern house with dark gray standing seam metal roof panels installed on a steep roof
  • Standing seam metal roof panel rib options including flat panel, clip relief, striations and bead

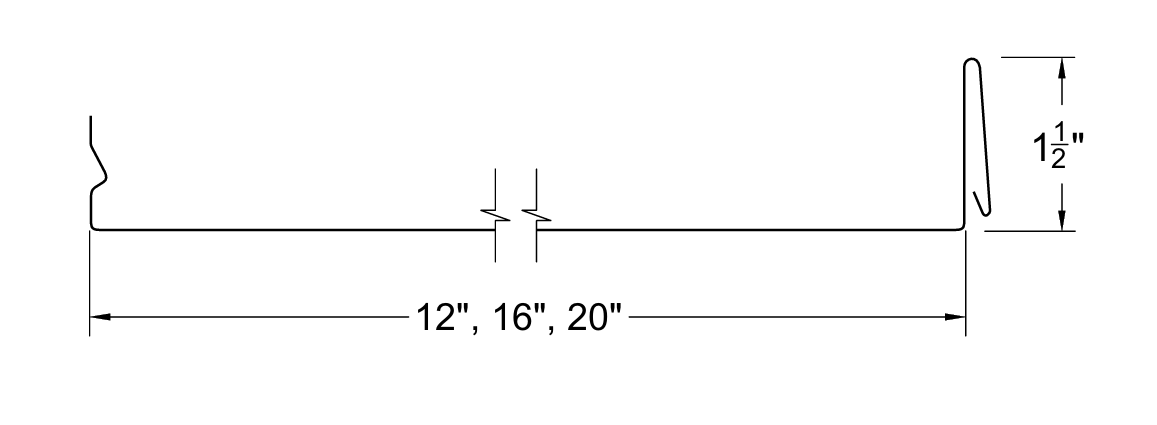

  • 1.5 inch standing seam metal roof panel profile with 12, 16 and 20 inch width options
1.5" Snap Lock Standing Seam Panel - 24ga Steel

1.5" Snap Lock Standing Seam Panel - 24ga Steel

$4.07 $4.07/ft
Total linear feet: 10 ft
Total: $0.00

Not sure what you need? We're here to help. Call us at (303) 564-8196 or email info@samedaymetal.com

Custom 1.5" snap lock standing seam metal roof panels, roll-formed from 24 gauge pre-painted steel in lengths from 3' to 64'. The snap-lock seam installs without mechanical seaming, and concealed fixed clips keep every fastener out of the weather.

Quick Specs

  • Panel Type: 1.5" Snap Lock Standing Seam (DMC 450SL)
  • Material: 24 gauge pre-painted steel
  • Finish: PVDF / Kynar 500® — 35-year paint warranty
  • Panel Width: 16"
  • Panel Lengths: Custom, 3' to 64'
  • Fastening: Concealed fixed-clip snap lock system
  • Minimum Roof Slope: 3:12
  • Rib Options: Flat Panel, Clip Relief, Striations, Bead

Why Choose This Panel?

  • Fast installation — panels snap together, no seaming tool required
  • Clean lines — concealed fasteners and custom lengths mean fewer seams and a sleeker roofline
  • Durable finish — Kynar 500® resists fading and chalking for decades
  • Proven protection — Class 4 hail impact and Class A fire rated

Colors

Choose from a wide range of standard and low-gloss architectural colors — neutrals, bronzes, grays, blacks, blues, greens, and reds. Eligible colors carry the PVDF / Kynar 500® paint system.

Custom Lengths & Ordering

Select your color, rib option, panel length, and quantity, then add to cart. Need lengths over 64' or on-site roll forming? Contact us and we'll work out the best approach for your project.

Testing & Performance

  • UL 580 Class 90 Wind Uplift
  • UL 1897 Extended Phase Wind Uplift
  • UL 2218 Class 4 Hail Impact
  • UL 790 Class A Fire Rating
  • UL 263 Fire Certification
  • UL Environmental — SRI Third-Party Verified

Need Help Ordering?

Call (303) 564-8196 or email info@samedaymetal.com — we'll help you pick the right length, color, and rib option for your project.
