2" Mechanical Lock Standing Seam Panel - 24ga Steel

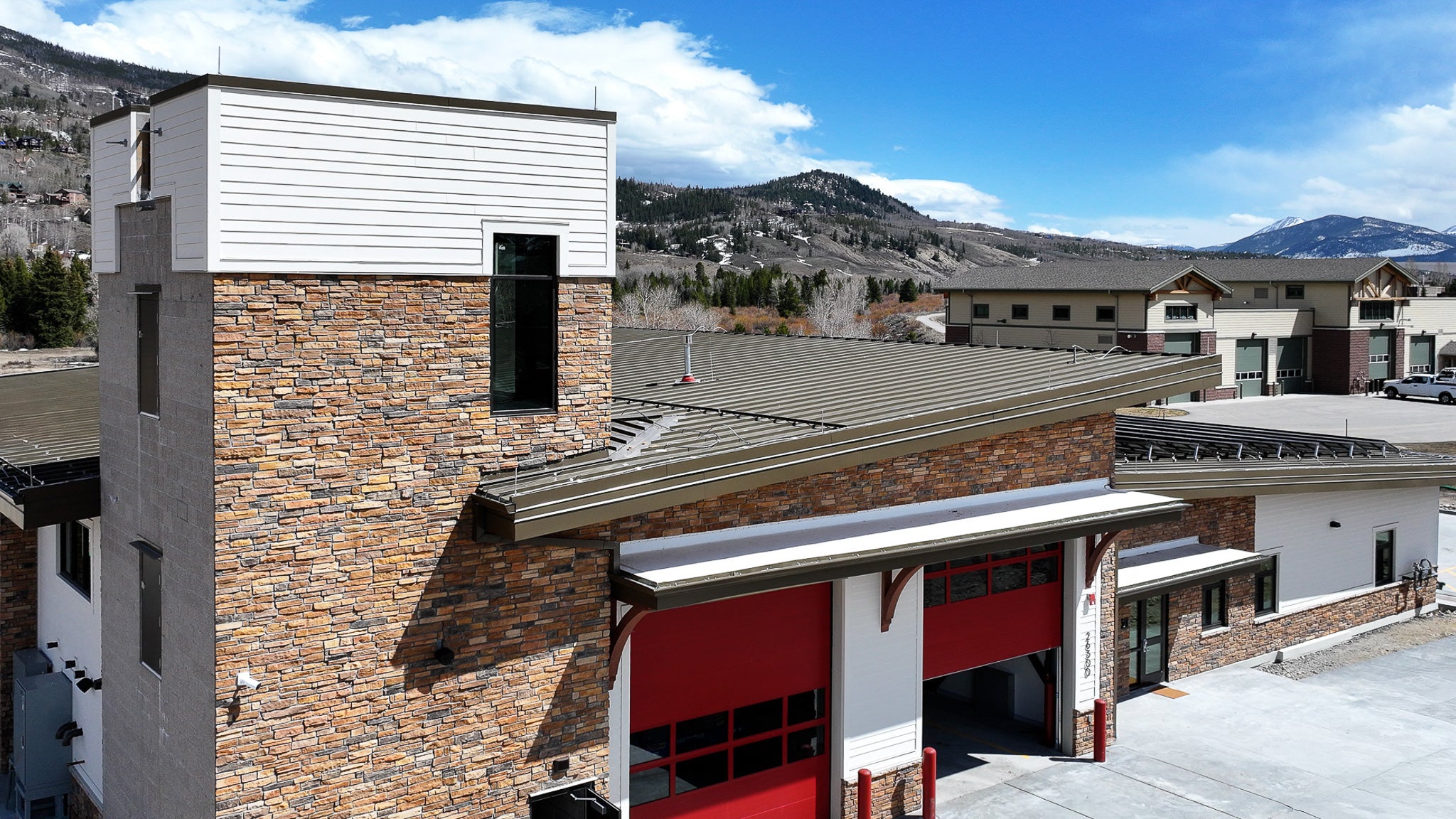

Custom 2" mechanical lock standing seam metal roof panels, roll-formed from 24 gauge pre-painted steel in lengths from 3' to 64'. The tall 2" seam is mechanically locked in the field, making this our highest-performance panel for low-slope, commercial, and demanding residential roofs.

Quick Specs

• Panel Type: 2" Mechanical Lock Standing Seam (DMC 200S)
• Material: 24 gauge pre-painted steel
• Finish: PVDF / Kynar 500® — 35-year paint warranty

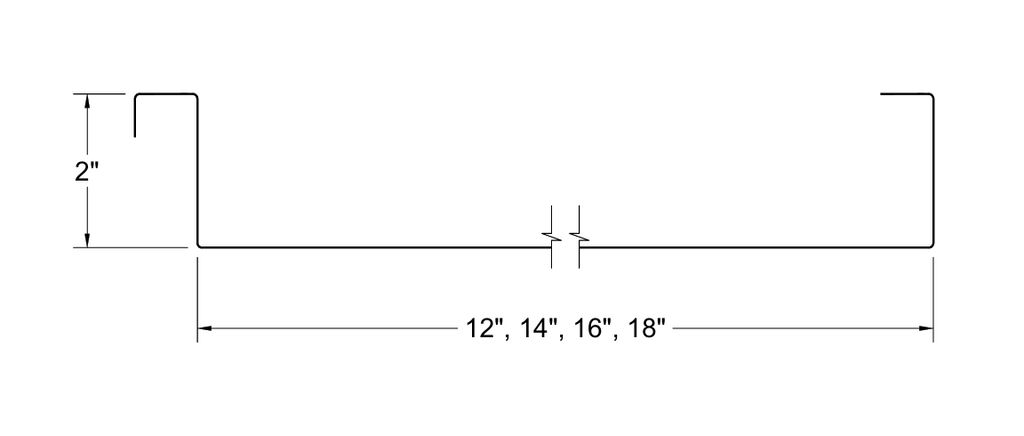

• Panel Width: 16" or 18" (same price)
• Panel Lengths: Custom, 3' to 64'
• Fastening: Concealed clip mechanical lock system
• Seam Options: Single lock or double lock
• Minimum Roof Slope: 1/2:12 for qualifying mechanical seam applications
• Rib Options: Flat Panel, Striations, Bead

Mechanical Lock vs. Snap Lock

Mechanical lock panels are seamed together in the field with a seaming tool, creating a tighter lock than snap-together panels. The 2" seam height adds a bold architectural profile and the performance needed for very low slopes. If you want faster installation on a steeper roof, consider our snap lock panel instead.

Why Choose This Panel?

• Built for low slopes — down to 1/2:12 on qualifying assemblies
• 2" seam height — bold profile with enhanced weather resistance

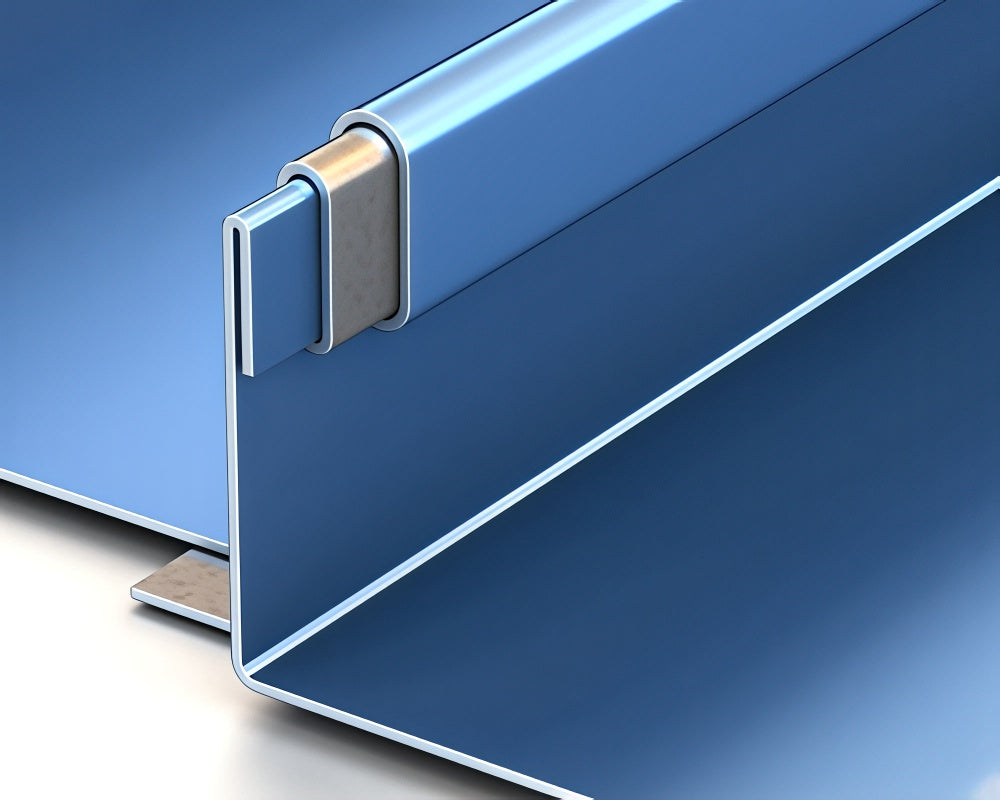

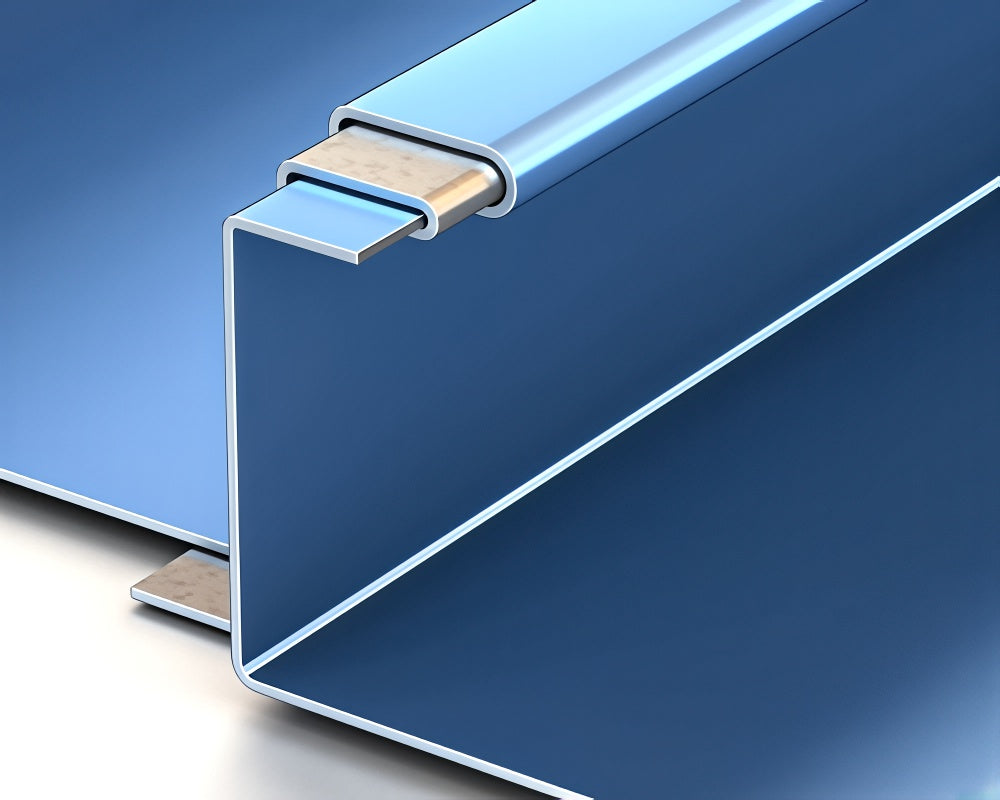

• Single or double lock — match the seam to your project requirements
• Clean lines — concealed fasteners and custom lengths mean fewer seams
• Durable finish — Kynar 500® resists fading and chalking for decades

Colors

Choose from a wide range of standard and low-gloss architectural colors — neutrals, bronzes, grays, blacks, blues, greens, and reds. Eligible colors carry the PVDF / Kynar 500® paint system.

Custom Lengths & Ordering

Select your color, rib option, panel length, and quantity, then add to cart. Need lengths over 64', jobsite-specific lengths, or on-site roll forming? Contact us and we'll work out the best approach for your project.

Testing & Performance

Applicable approvals vary by assembly, gauge, substrate, clip spacing, panel width, and installation method.

• UL 580 Class 90 Wind Uplift
• UL 1897 Extended Phase Wind Uplift
• UL 2218 Class 4 Hail Impact
• UL 790 Class A Fire Rating
• ASTM E1592 Uniform Static Air Pressure Uplift
• ASTM E1646 Water Infiltration
• ASTM E1680 Air Infiltration
• UL Environmental — SRI Third-Party Verified
