Headwall Trim - Standing Seam
$21.50
Select the roof pitch for this trim so we can fabricate it correctly, then add it to cart. Need help? Call us at (303) 564-8196 or email info@samedaymetal.com.

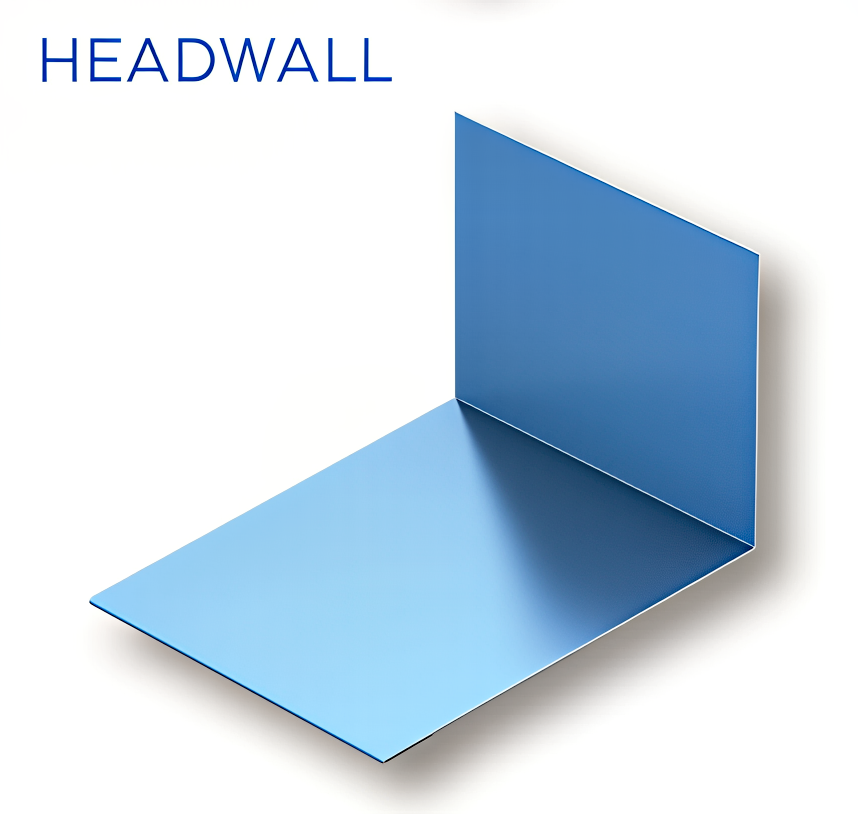

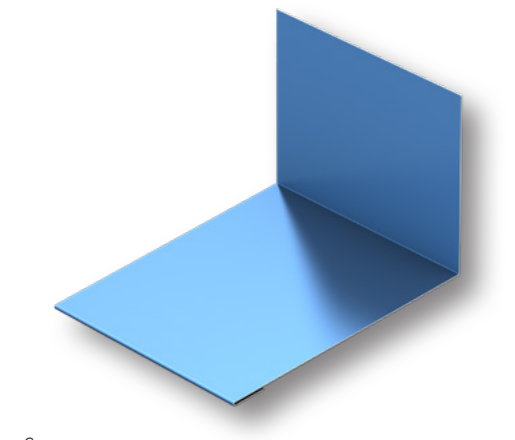

The Drexel Metals Headwall Trim flashes the transition where the top of a sloped roof meets a vertical wall. Part of the Drexel Metals roofing system trim line, custom-fabricated from pre-painted steel or aluminum to match your panel color and gauge.
Specifications

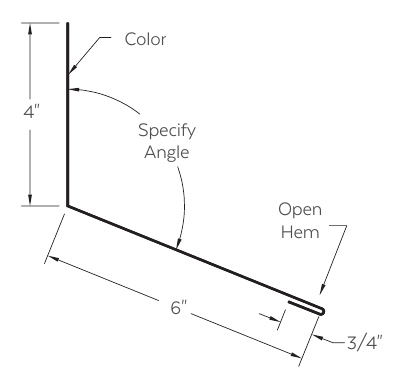

- Standard Length: 10'
- Wall Leg: 4"
- Roof Leg: 6"
- Profile: Open hem (3/4"); angle specified to match roof pitch (1-12)
- Gauge: 26ga / 24ga / 22ga steel or .032 / .040 aluminum
- Finish: Color-matched to Drexel Metals panels
- Fabrication: Made to order
Applications
Roof-to-wall (headwall) flashing where the high side of a sloped metal roof meets a vertical wall. Specify roof pitch when ordering.
