Panel-Tite Metal-to-Wood Screw #10-14 - Mill (250/Bag)
1"
$26.67
Skip to product information
Panel-Tite Metal-to-Wood Screw #10-14 - Mill (250/Bag)
$26.67

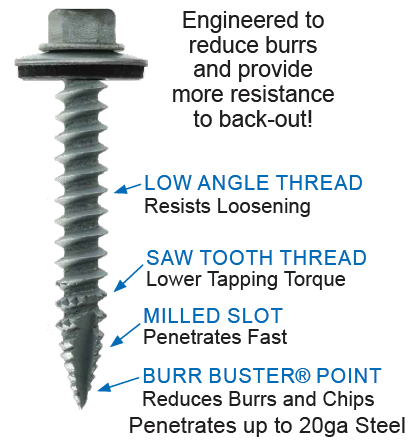

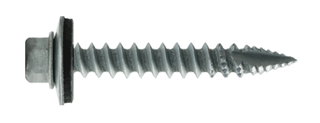

The PANEL-TITE® #10-14 Metal-to-Wood Screw (Mill) is designed for fast installation and corrosion-free performance on standard roof, wall and trim applications. The Type 17 milled point eliminates wood splitting and speeds installation, while the HiLo thread delivers ultimate pullout resistance. Each screw is assembled with a bonded EPDM sealing washer for exceptional weatherability and finished with TRI-SEAL® 1,000-hour salt-spray coating, formulated for treated-lumber applications.
Specifications
- Thread / Diameter: #10-14 (.185")
- Point: Type 17 milled point
- Thread Type: HiLo
- Drive: 1/4" (.250") HWH
- Sealing Washer: 12 mm O.D. bonded EPDM
- Material: Carbon steel
- Finish: Mill, TRI-SEAL® 1,000-hr salt-spray coating
- Steel Penetration: Up to 20ga (.036")
- Lengths: 1", 1-1/2", 2", 2-1/2", 3"
- Pack: 250 per bag
Applications
Metal-to-wood attachment of exposed-fastener metal roofing, wall panels and trim over wood substrates. Type 17 point installs without pre-drilling, and the TRI-SEAL coating with bonded EPDM washer provides corrosion-free, weathertight performance — suitable for warranted roofs, walls and trim.
