Drexel Metals ridge and hip trim

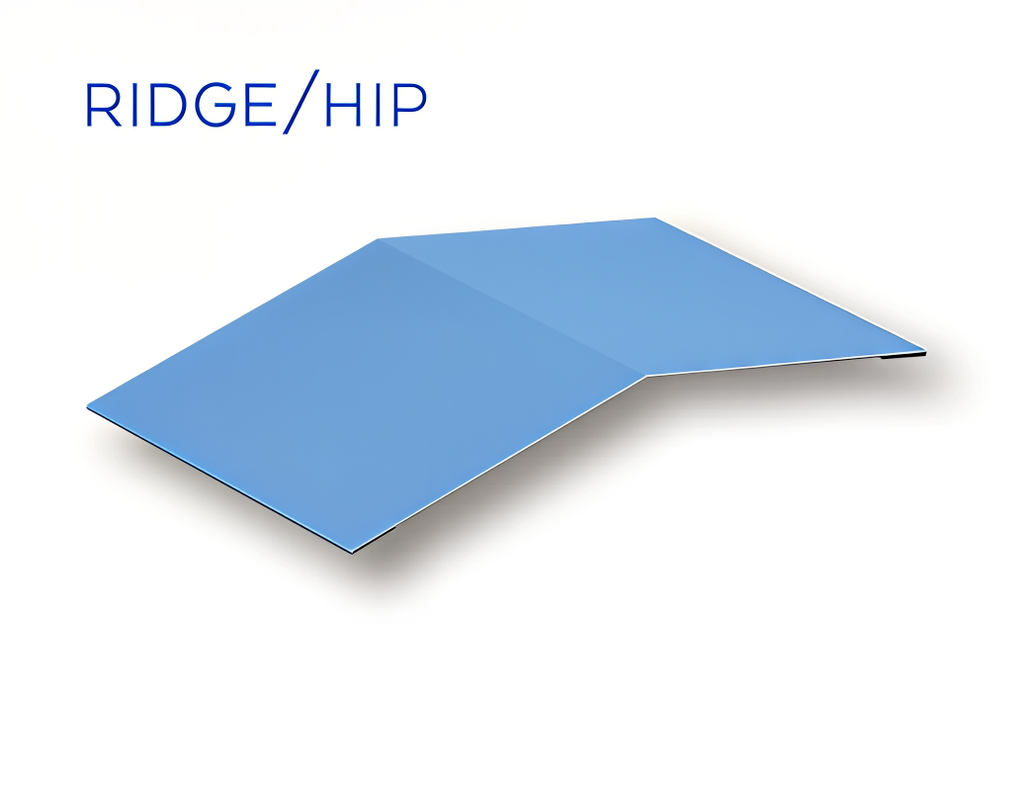

  • Drexel Metals ridge and hip trim

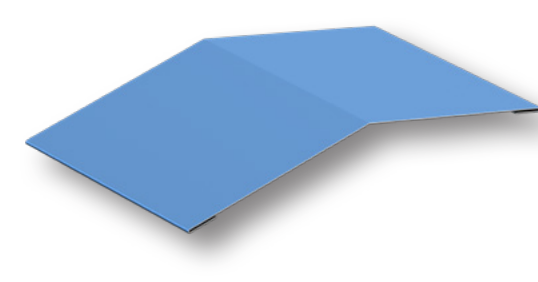

  • Drexel Metals ridge and hip trim profile drawing

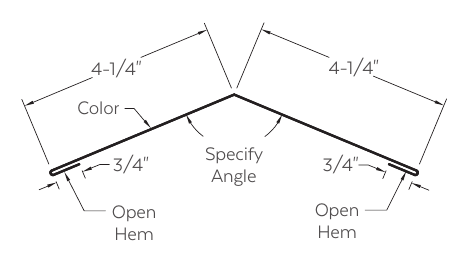

  • Drexel Metals ridge and hip trim installation diagram
Ridge / Hip Trim - Standing Seam

Ridge / Hip Trim - Standing Seam

$22.27

Select the roof pitch for this trim so we can fabricate it correctly, then add it to cart. Need help? Call us at (303) 564-8196 or email info@samedaymetal.com.

The Drexel Metals Ridge / Hip Trim caps the ridge and hip lines of a metal roof, covering panel terminations while shedding water. Part of the Drexel Metals roofing system trim line, custom-fabricated from pre-painted steel or aluminum to match your panel color and gauge.

Specifications

  • Standard Length: 10'
  • Coverage: 4-1/4" per side
  • Profile: Open hems (3/4"); angle specified to match roof pitch (1-12)
  • Gauge: 26ga / 24ga / 22ga steel or .032 / .040 aluminum
  • Finish: Color-matched to Drexel Metals panels
  • Fabrication: Made to order

Applications

Installed along ridge and hip lines of standing seam and metal roof systems to cap and weatherproof panel terminations. Specify roof pitch (and ridge or hip) when ordering.
